Supporting the preservation of a historic central London building
In line with the University College London’s (UCL) long-term maintenance plans to ensure the future of their historic Cruciform Building, we are providing lead consultant and principal designer services on a project to review and manage roofing repair works. Ensuring the preservation of the historic structure, we carried out a review of the roof and manage the ensuing repair works.
The Grade II listed building was designed by the renowned Victorian architect, Alfred Waterhouse, who also designed the Natural History Museum in South Kensington. It was completed in 1906 and functioned as University College Hospital until 1985 when it was vacated by the NHS. Following extensive conversion and renovation works, today it is home to UCL’s Wolfson Institute for Biomedical Research.
![DJI 0416](https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/Cruciform-Building/DJI_0416_v2.jpg?w=800&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1709652299&s=126c5ef13eea29cf8e433d321db055b7 800w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/Cruciform-Building/DJI_0416_v2.jpg?w=1100&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1709652299&s=ee26bc21433d99b7d9dc4d46cb3ad6fd 1100w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/Cruciform-Building/DJI_0416_v2.jpg?w=1300&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1709652299&s=adbdc868f5cc99230bb72125aea5b99d 1300w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/Cruciform-Building/DJI_0416_v2.jpg?w=1600&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1709652299&s=7175f42949156d8f24a091fd0c6edc7c 1600w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/Cruciform-Building/DJI_0416_v2.jpg?w=1920&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1709652299&s=c125b1b27a19b5004f12af8beaa2ad76 1920w)
challenges and solutions
Overcoming access challenges
Owing to its central London location, the building is in prominent public view and surrounded by four city centre roads. All of which make access to carry out a review of the six-storey building’s roof extremely difficult.
Adding to complications, the adjacent UCL Hospital requires access for blue light vehicles at all times, meaning roads had to remain accessible throughout any works.
Innovation
Reducing risk with high-tech surveying methods
NEXT STEPS
Ensuring site safety through stringent planning

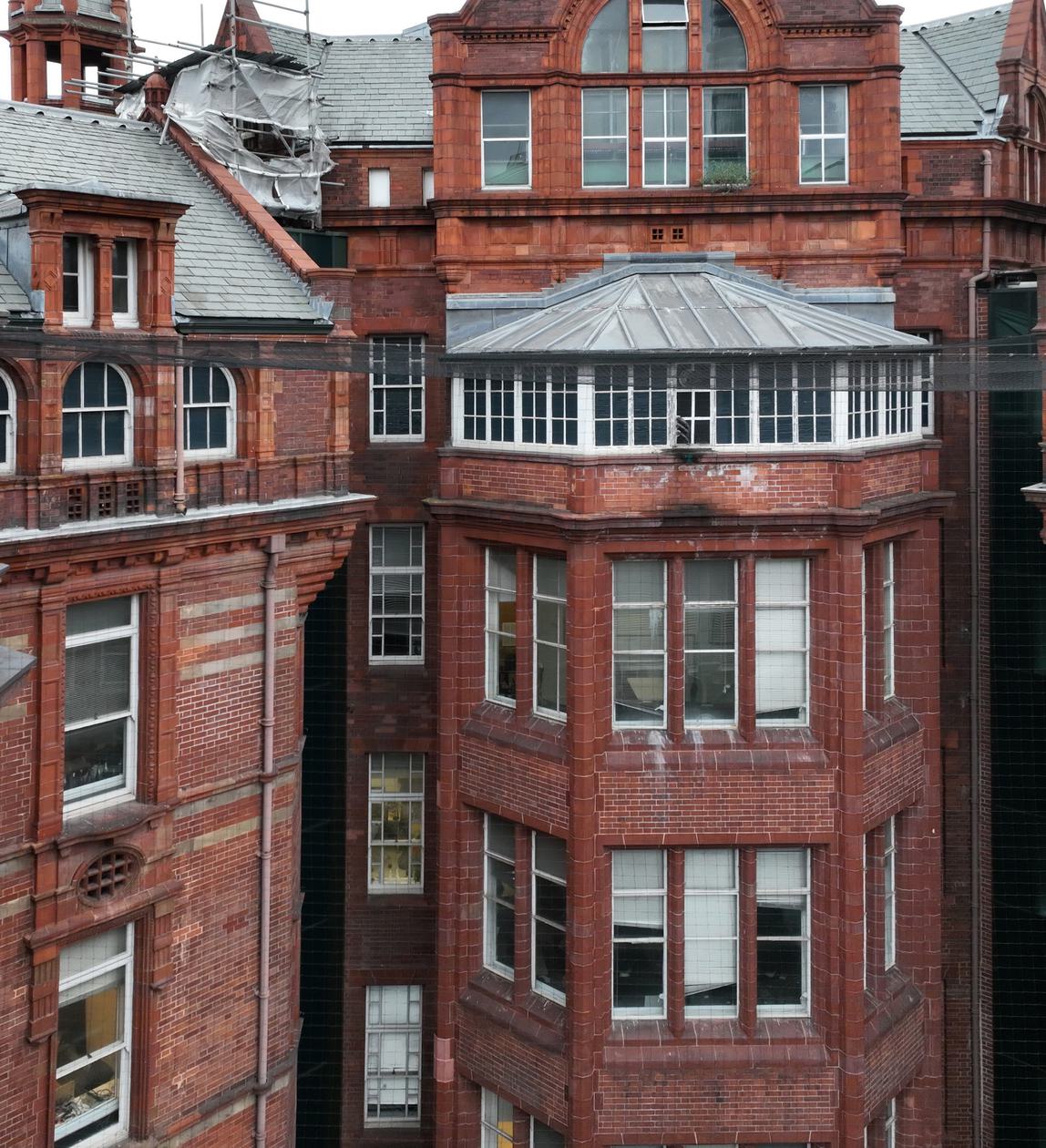

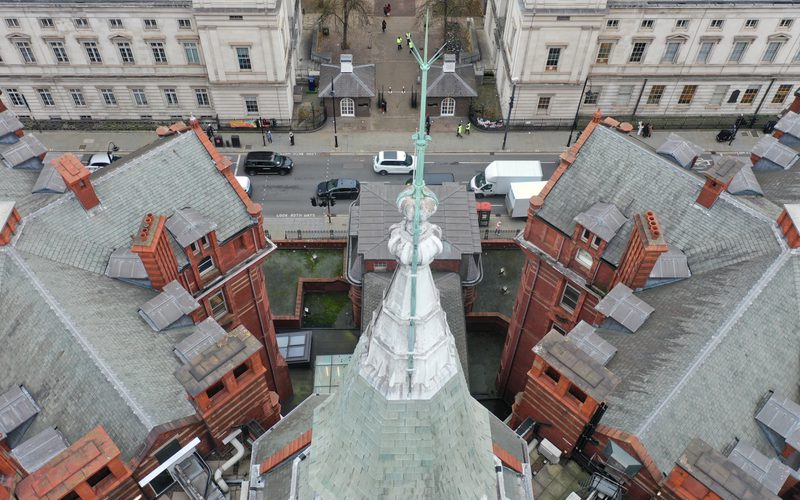

The HD images captured by the drone detail the condition of each individual area of the roof which will inform the sensitive repair works. The report will also support applications for Listed Building Consent which must be secured before any works are undertaken.
The imagery obtained also allowed for a point cloud which enabled us to create an accurate roof plan of the building.
To ensure the safety of all those working on the project and within the vicinity of the building, strategic and detailed planning will be required before beginning work on site. This may entail carefully phased work to ensure each section is managed stringently and risks are minimised.
