UKRRIN Centre of Excellence in Rolling Stock Advanced Research Facility
Huddersfield, UK
project overview
Developing a world class rolling stock research facility
The UK Rail Research and Innovation Network (UKRRIN), Centre of Excellence in Rolling Stock (CoERS), is hosted at the University of Huddersfield’s Institute of Railway Research, an established world class railway research centre.
UKRRIN is a £92m government research council and industry co-funded initiative, developed to analyse and provide critical insight into rolling stock, infrastructure and the future of new rail technologies. CoERS is one of three Centres of Excellence formed by a consortium of universities, including the University of Birmingham, Southampton, Newcastle, Loughborough, Nottingham, Sheffield and Heriot-Watt.
![Full width image](https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Full-width-image.jpg?w=800&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=92cb2a1d43b73c4697dc19cb65acbee3 800w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Full-width-image.jpg?w=1100&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=7502af4a252b57be408433a569e88d34 1100w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Full-width-image.jpg?w=1300&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=cb0f1f6705e9fc8d6e09121ccd0c3d5e 1300w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Full-width-image.jpg?w=1600&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=55d62bef5ef77b0316155be0cf12c79a 1600w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Full-width-image.jpg?w=1920&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=bcbd9f4a7743951ecb5f298cd0b55359 1920w)
Research and innovation
Supporting rail and transport through new research
In developing the UKRRIN CoERS research facility, we provided lead designer, architecture, project management and principal designer services to oversee the wider multi-disciplinary team. The team included Frazer Nash Consultancy (Specialist Engineering), M&E consultants and highly skilled, specialist train innovation experts working collaboratively with world class rig designers and suppliers.
Due to scale and complexity, the scheme required a lead project manager and senior technical engineering coordinator to be appointed from our practice.
We also led the procurement and engineering design for the rigs, considering the complexities of lead times and design constraints, particularly the limitations of the existing 1960’s building.
The University of Huddersfield was selected as the lead partner to develop CoERS, the centre will meet current and future demands of the GB Rail Industry for Research and Innovation to support the next generation of rail vehicles.
Along with its academic partners, the centre is integrated into UKKRIN and focuses on the major themes of Reduced Whole Life Cost Vehicles and Future Low Energy Vehicles. The work of the centre supports the Rail Technical Strategy, paving the way for innovations to reduce cost and carbon emissions.
Evolving technology
Supporting RSG’s ‘Fast Track to the Future’ vision
![Image 027](https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Image-027.jpg?w=800&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=10d816af823c3c911fddfc7362dfb6f7 800w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Image-027.jpg?w=1100&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=5744eab01268a4a3c5be2a1afd4f87f8 1100w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Image-027.jpg?w=1300&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=d6de34148bc6ea2d921c7ce18913eb35 1300w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Image-027.jpg?w=1600&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=974a54cb26ea048d51338eb28b74bc82 1600w, https://ahr-website.transforms.svdcdn.com/production/uploads/Projects/University-of-Huddersfield-UKRINN/Image-027.jpg?w=1920&q=80&auto=format&fit=crop&crop=focalpoint&fp-x=0.5&fp-y=0.5&dm=1684016017&s=5528d9b444a1ba23afce52fc67bf2f5b 1920w)
Design Development
Supporting sensitive equipment and ensuring safety

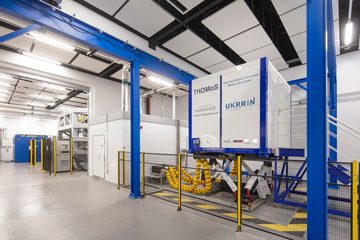

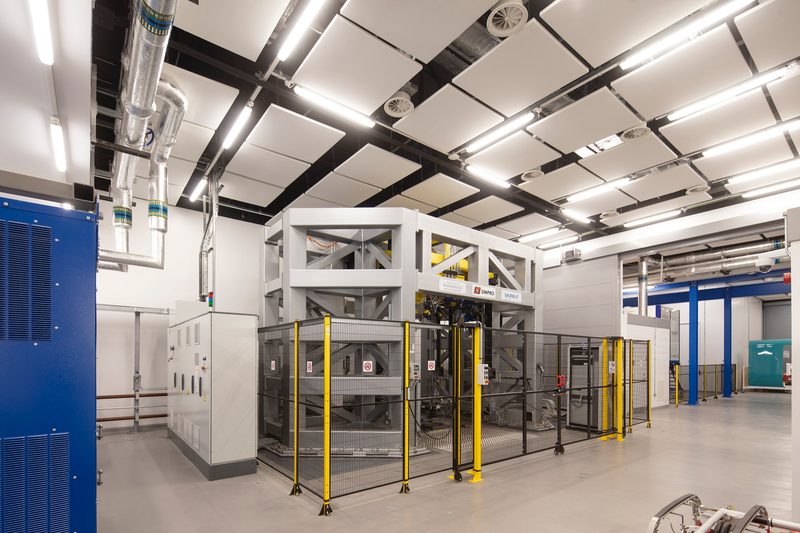

We designed the building to include two key test facilities, the pantograph and passenger train simulator, both unique in terms of instrumentation and testing capability. Every component of the rig was bespoke and contained parts from 124 different countries; meeting a world-class standard for accuracy and performance.

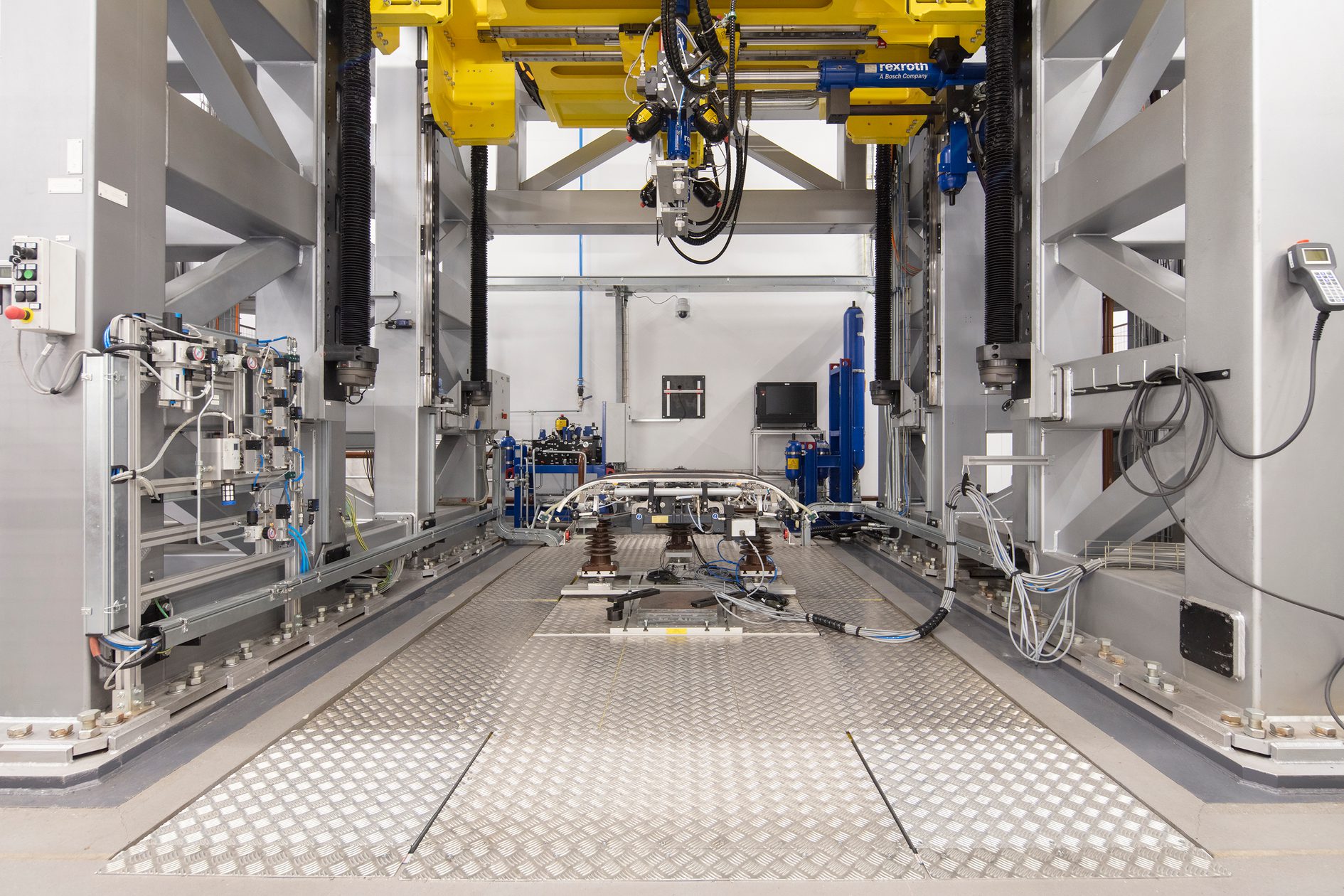

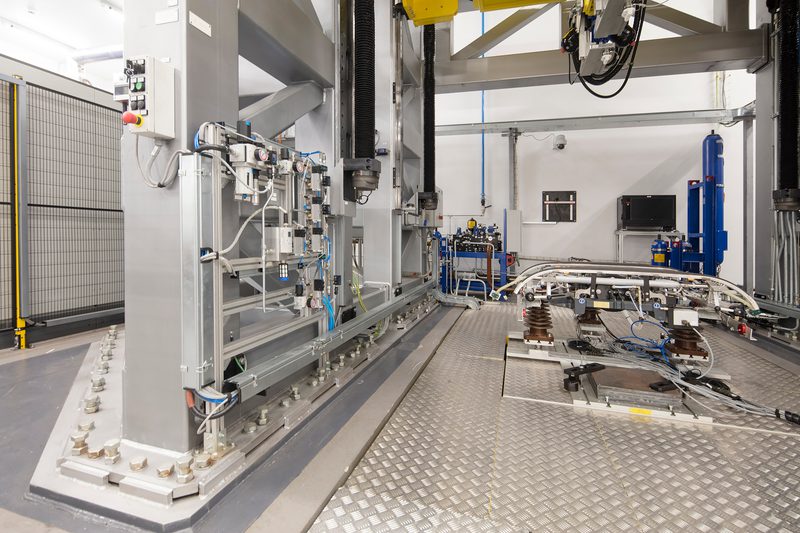

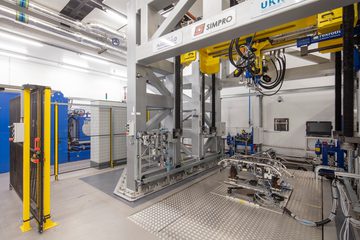

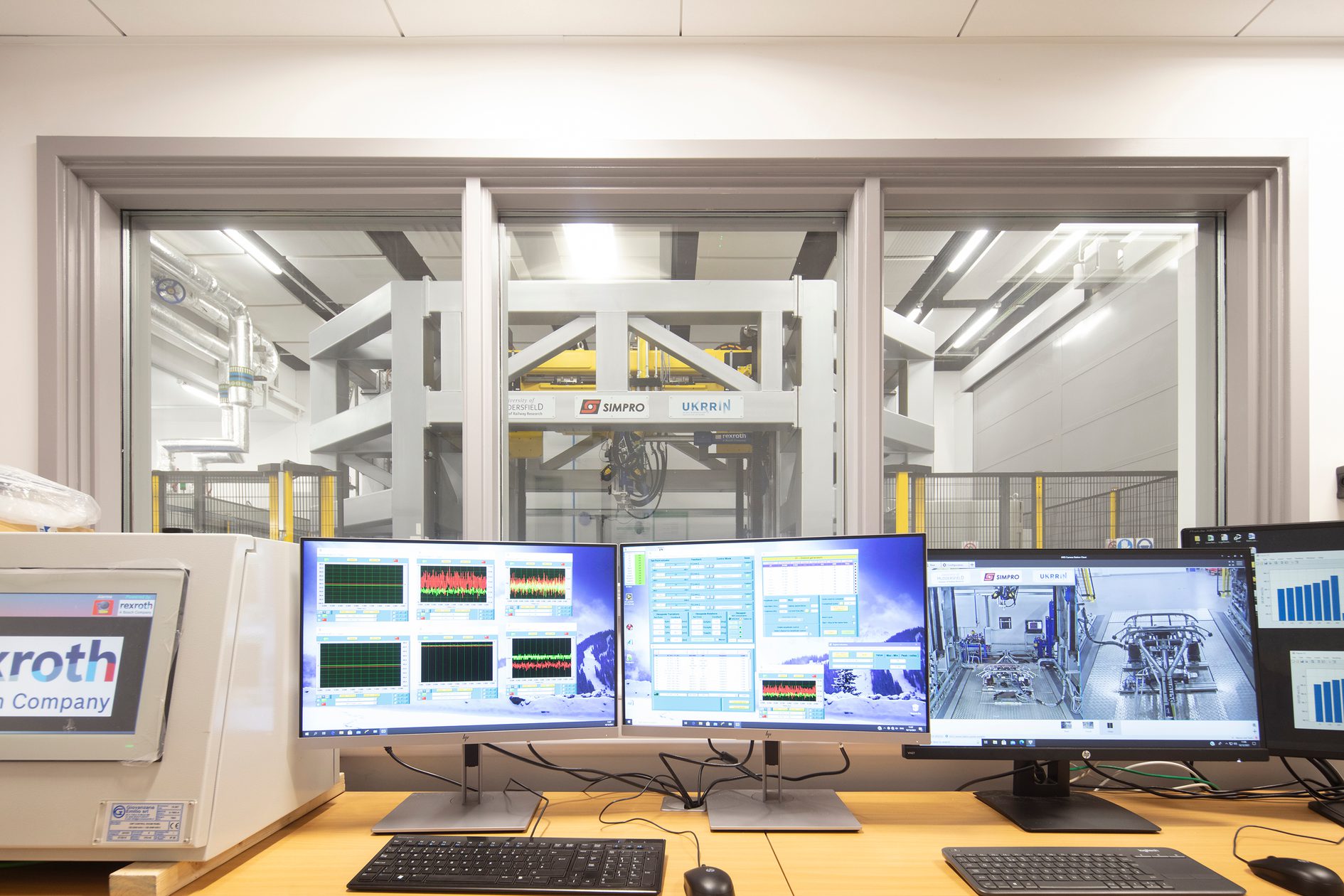

The pantograph test facility was built both above and below ground, with a seven-metre-deep counterweight and 28m deep piles descending to bedrock. This secures the rig against the extreme forces caused by the main carrier head, high velocity movement simulating the characteristics of overhead cables on a rail journey.

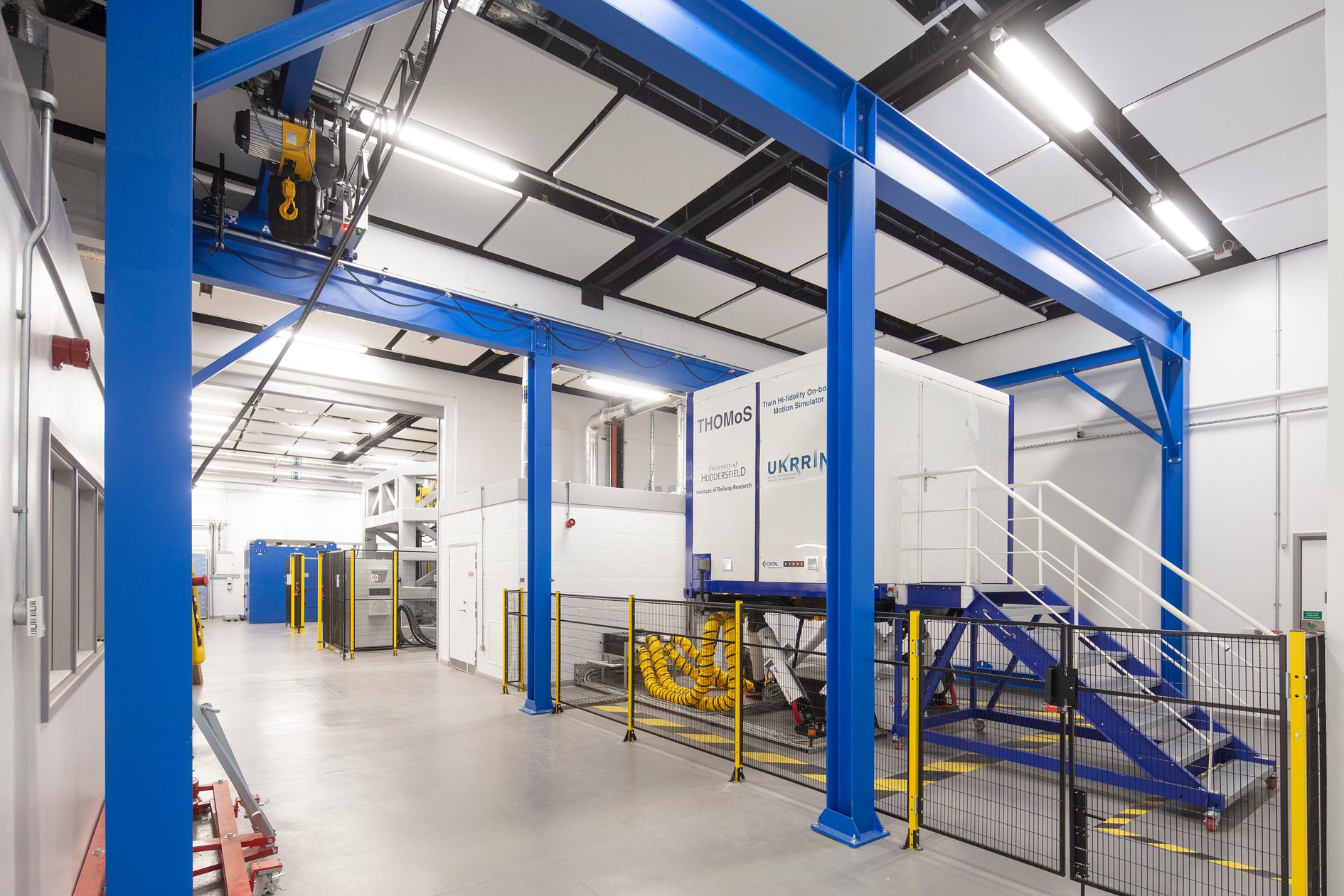

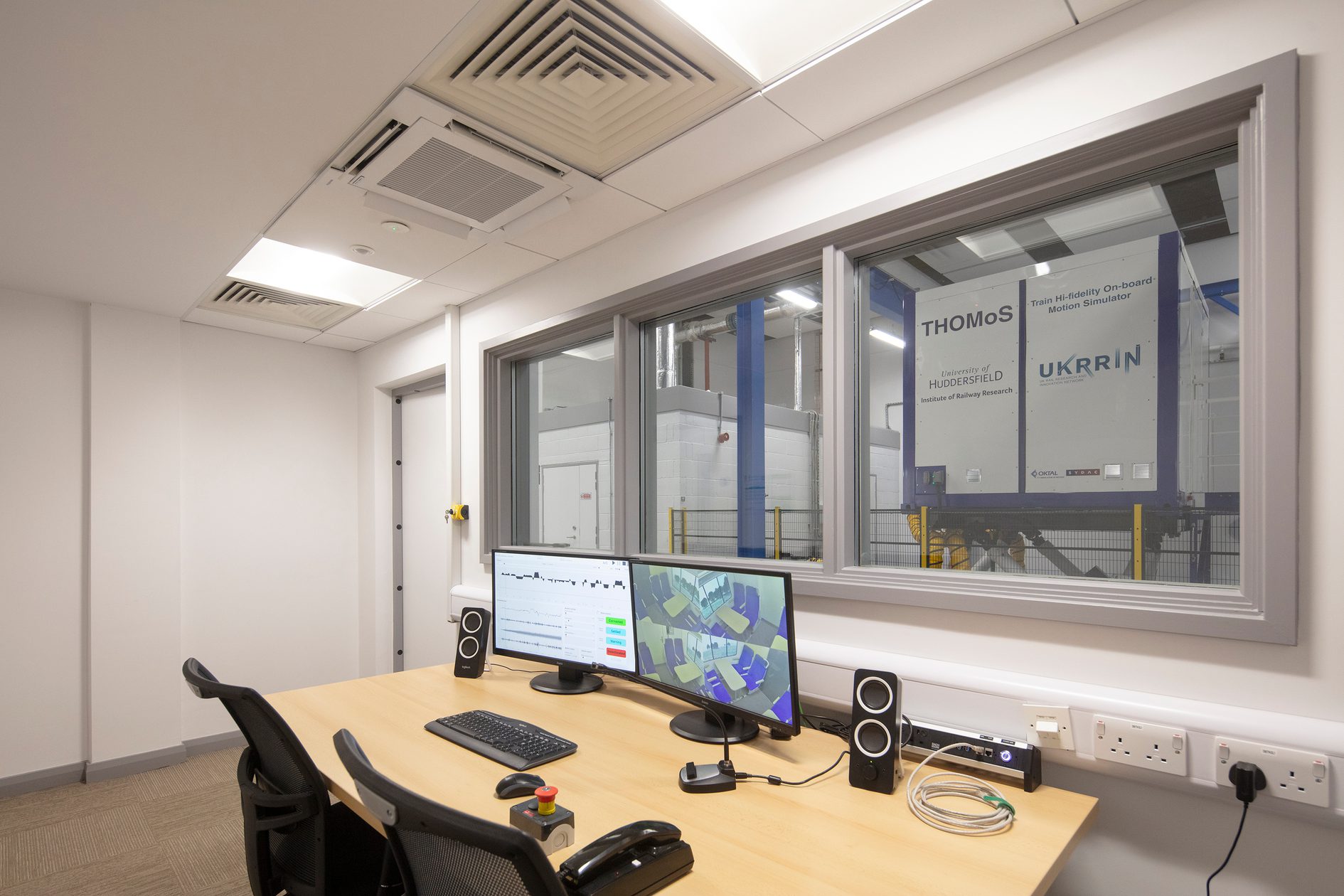

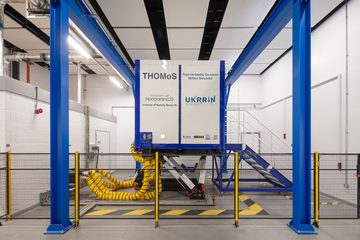

The THOMoS simulator had to be capable of simulating any train characteristic or rail journey, to understand the safety concerns around standing people in a moving simulator, This had never been definitively benchmarked within the industry before. The simulator is used for a variety of research, including looking into the causes of travel sickness on rail journeys, especially in certain areas of track.
We are very excited to be a part of the UK Rail Research and Innovation Network.”
Professor Bob Cryan
Vice Chancellor of the University of Huddersfieldchallenges and solutions
Coordinating project delivery to prevent disruption to surrounding research
Detailed coordination with various stakeholders was required to ensure that all university facilities remained operational throughout the construction and that research deliverables would not be affected. We were proactive in ongoing discussions with the university and adjacent research facilities to ensure that commercial commitments and user safety were not affected by the UKRRIN works.
A key challenge to overcome was in respect of procurement in that the design of the rigs (long lead) was commenced in conjunction with the building alterations thereby requiring multiple and detailed design adaptation throughout the whole delivery process.
